Meet the Hollyland Solidcom H1: Wireless Intercom, Without Limits

In live broadcasting, filmmaking, and events, clear and reliable communication is essential. The Hollyland Solidcom H1 Wireless Intercom System provides a professional solution that removes barriers to crew communication, delivering a licence-free, scalable, and highly adaptable platform. Built with flexibility, long-range performance, and intuitive cloud-based management, the H1 is designed for productions of all sizes — from small indie shoots to sprawling live festivals.

Scalable Wireless Intercom Solutions

Communication needs can grow quickly, especially in professional production environments. The Solidcom H1 Wireless Intercom System is designed with scalability at its core. Each system supports up to 30 beltpacks and 12 groups without requiring a central station, thanks to its independently functioning antennas.

When productions demand even more, the Geo Central Station expands the system drastically. With support for up to 80 beltpacks, 100 groups, and coverage spanning over 4 million square metres, the Solidcom H1 is powerful enough to manage communication across football stadiums, music festivals, and multi-location broadcast units.

This “start small and grow” approach allows production companies to invest in exactly what they need now while future-proofing themselves against larger projects. Unlike conventional systems requiring expensive licences, the H1 remains completely licence-free, saving costs year after year.

Speak to Raycom today to find the right wireless intercom system for your UK production
needs and scale your communication with confidence.

Independent Antenna Design for Versatility

At the heart of the Solidcom H1 are the modular ANT01 antennas. Each antenna works independently to support up to 20 beltpacks, ensuring efficient communication even without a central station. By linking three antennas, coverage extends to up to 50 beltpacks or 30 beltpacks with full roaming capability between antennas, perfect for mid-sized productions such as studio shows, corporate conferences, and regional live events.

For larger projects, the Geo Central Station allows cascading of up to 8 antennas. This creates a seamless, wide-area network where crew members can roam between coverage zones without interruptions or dropouts. From outdoor stages to studio lots, communication flows without friction, enhancing workflow efficiency and minimising downtime.

Remote Management & Cloud Control

Modern productions need remote flexibility as much as physical reliability. The Solidcom H1 Wireless Intercom System addresses this with advanced management capabilities:

• Browser & Mobile Control: Full configuration of the system is available via web interface and mobile application, removing the need for constant on-site adjustments.
• Cloud Access: In Geo Central Station setups, up to 8 users can manage the system remotely via cloud connections. With antenna-only setups, up to 4 cloud users are supported.
• Role Pre-Assignment: Easily assign roles (e.g., Director, Vision Mixer, Sound Operator) across groups of beltpacks with instant configuration changes.
• Batch Configuration Tools: Save time with preset uploads, backups, and simultaneous firmware updates via network or charging docks.

This feature set makes the H1 highly suitable for international productions where some technical teams may need to provide remote support from different locations, or for multi-day festivals where fast design changes are required day by day.

Need a system that adapts in the field? Contact Raycom today to discover how cloud- ready intercoms like the Solidcom H1 can optimise your workflow.

Built for Professional Production Workflows

The Solidcom H1 pairs intelligent system design with robust and lightweight hardware:

• Wireless range of up to 500m (line of sight) per antenna.
• Reliable roaming between antennas for uninterrupted operation.
• BPK01 Beltpacks built for long days, weighing just 305g with a battery included.
• 15 hours continuous battery life, reducing swap-outs during long shoots or live concerts.
• Bluetooth integration for wireless headsets, TWS earbuds, or headphones.
• Four customisable beltpack buttons, individually mapped as talk keys, call alerts, or stacked group assignments.
• Support for up to 16 audio channels with the Geo Central Station.

The compact but durable beltpacks are designed with crew comfort and usability in mind, making them ideal for broadcast technicians, camera operators, stage managers, and events staff alike.

Dante Integration & System Compatibility

The Solidcom H1 is designed for hybrid infrastructure, allowing productions to integrate it seamlessly into both modern and traditional setups:

• 4×4 Dante I/O via the Geo Central Station for instant integration into cutting-edge audio-over-IP networks.
• 2W/4W traditional intercom interfaces, ensuring compatibility with existing wired systems that many UK broadcasters or theatres continue to rely on.
• Plug & Play Deployment — automatic device recognition means no manual IP configuration is required when cascading antennas or stations.

This cross-compatibility makes the H1 perfect for companies gradually upgrading their infrastructure while maintaining their existing networks.

Easy Plug & Play Deployment

While packed with advanced functionality, the Solidcom H1 remains intuitive to set up. The hardware has been meticulously engineered to provide a plug & play setup process across various deployment scenarios.

Whether you’re configuring a small two-antenna setup for a university production or cascading eight antennas for stadium coverage, no complex programming or networking knowledge is required. Automatic identification between devices ensures fast deployment, helping production teams spend less time setting up and more time delivering on their creative goals.

How One Might Use the H1 in Real Productions

The versatility of the Hollyland Solidcom H1 Wireless Intercom System makes it a valuable asset across a wide range of production environments. From intimate projects to large-scale events, here’s how the system can be deployed at different levels:

• Independent Films & Small Productions
  A single ANT01 antenna and a few beltpacks give directors, operators, and first assistants reliable, full-duplex communications. Even small crews working on low-budget films or small studio projects gain true professional-grade intercom quality.

• Broadcast Studios & Conferences
  Multi-camera broadcast operations or corporate conferences require multiple talk channels. With three cascaded antennas and 30 beltpacks, producers, technicians, presenters, and stage managers stay fully connected.

• Sports Events
  Whether in an arena, stadium, or motorsport circuit, beltpacks ensure constant contact between OB trucks, production control, and on-field staff. Thanks to 500m LOS coverage and Dante integration, intercom integrates seamlessly with audio networks.

• Festivals & Live Music
  Stages, lighting towers, and on-site broadcast stations are all connected under one wide-area roaming network. More than 80 beltpacks and 100 groups can be accommodated, covering festival campuses across millions of square metres.

• Outside Broadcasting & Field Productions
  OB vans maintain central wired intercom, while wireless beltpacks connect mobile camera operators, presenters, and runners. Integration with 2W/4W means old and new technology work together without disruption.


No matter the production scale, the H1 ensures clarity, coordination, and the seamless, licence-free communication essential for professional workflows.

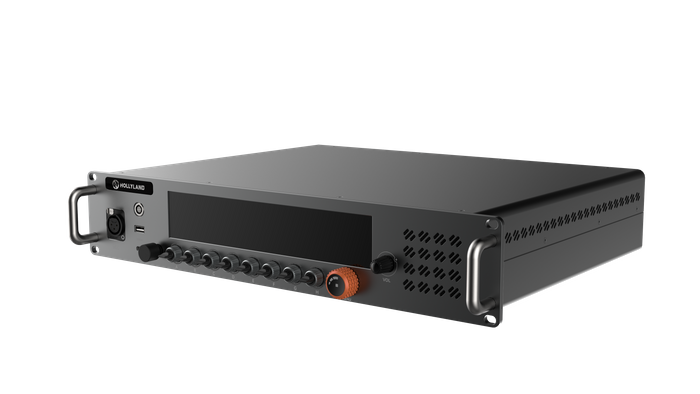

The Power of the Geo Central Station

For larger teams and complex productions, the Geo Central Station becomes the backbone of the Solidcom H1 ecosystem. When paired with ANT01 antennas, it supports up to 80 beltpacks and as many as 100 independent groups, ensuring even the largest crews stay coordinated. Thanks to advanced roaming cascade technology, it extends coverage to over 4 million square metres — equivalent to around 560 football pitches.

Engineered for integration, it comes with native 4×4 Dante support and 2W/4W standard interfaces, making it simple to bridge both modern AoIP networks and existing intercom systems. With PoE++ support (120W total output, 60W per port), streamlined RJ45 connections, and plug-and-play cascading, setup is quick and efficient.

From role-based grouping and batch configuration management to browser and mobile access, the Geo Central Station ensures productions gain maximum control. Built tough with a rackmount-ready design (482.6 × 88.1 × 385mm, 7.25kg) and reliable performance across -10℃ to 45℃, it is trusted as the communication hub for mission-critical broadcasts, expansive festivals, and major live events.

Technical Specifications

For professionals seeking detailed technical specs, the Hollyland Solidcom H1 ANT01 and BPK01 offer the following:

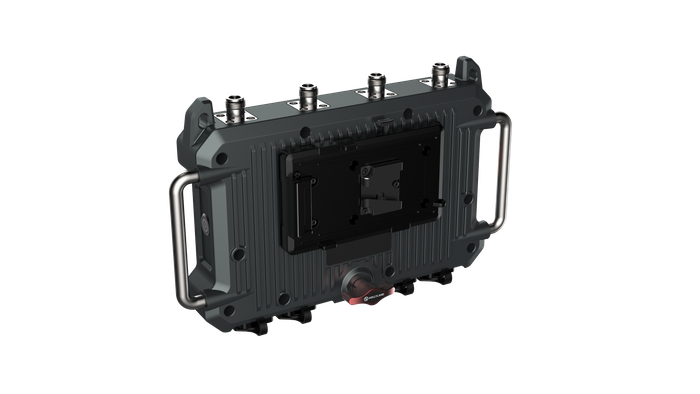

Solidcom H1 ANT01 Antenna Unit

• LOS Range: 500m
• Operating Frequency (CE / UK): DECT 1880–1900 MHz, BT 2402–2480 MHz, WiFi 2412–2472 MHz
• Transmit Power (CE): DECT ≤ 24 dBm, BT ≤ 5.83 dBm, WiFi ≤ 12.7 dBm
• Bandwidth: DECT 1.728 MHz, BT 1 MHz, WiFi 20 MHz
• Modulation Modes: DECT GFSK, BT GFSK, WiFi OFDM
• Receiver Sensitivity: -90 dBm
• Antenna Gain: 4dB
• Power Consumption: 15.5W
• PoE Input/Output: ≤ 60W input, ≤ 45W output
• Battery Voltage Range (V/G Mount): 11V – 30V
• Dimensions: 302 × 188.56 × 64.6 mm
• Weight: 1987g
• Operation Temperature: -10 ℃ – 45 ℃
• Storage Temperature: -20 ℃ – 60 ℃

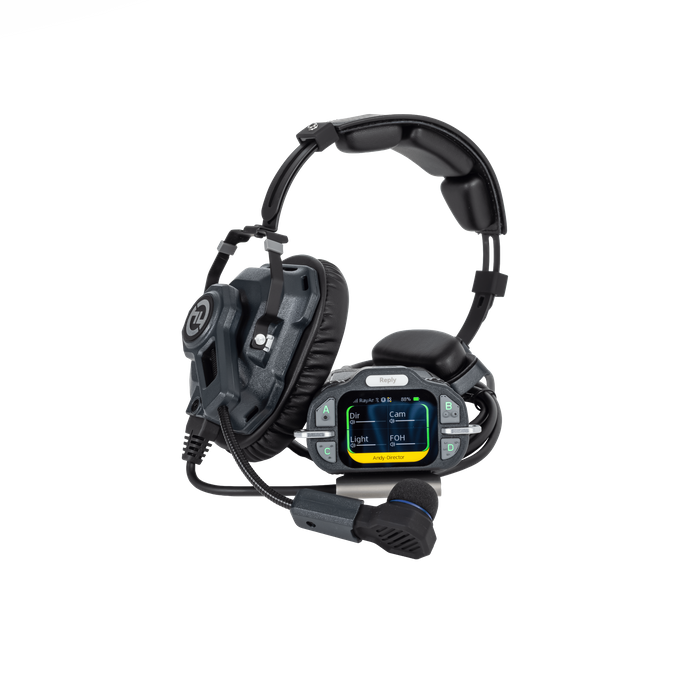

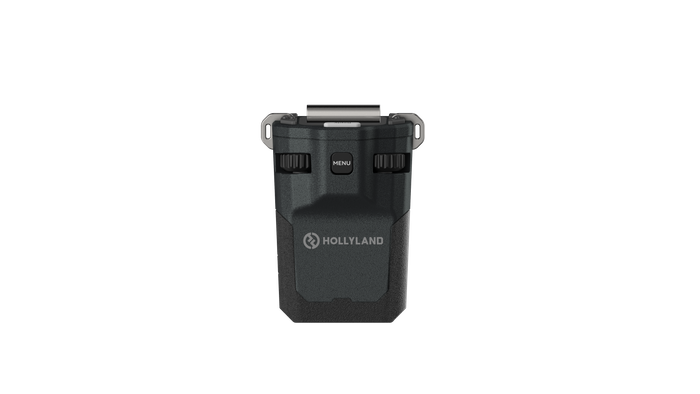

Solidcom H1 BPK01 Beltpack

• LOS Range: 500m
• Operating Frequency (CE): DECT 1880–1900 MHz, BT 2402–2480 MHz
• Transmit Power (CE): DECT ≤ 24 dBm, BT ≤ 5.92 dBm
• Bandwidth: DECT 1.728 MHz, BT 1 MHz
• Modulation Modes: DECT GFSK, BT GFSK/π/4-DQPSK/8DPSK
• Receiver Sensitivity: -90 dBm
• Battery Life: > 15h
• Dimensions: 114.65 × 89.2 × 61.8 mm
• Weight: 305g
• Operation Temperature: -10 ℃ – 45 ℃
• Storage Temperature: -20 ℃ – 60 ℃

LEMO Audio Interface (for BPK01)

• Input Frequency Response: 150 Hz – 7 kHz
• Maximum Input SPL: 115dB
• Noise Cancellation Depth: 20dB
• Distortion: < 1%
• Signal-to-Noise Ratio (SNR): 67dB
• Output SPL Level: 113dB Max

Battery Charging Base

• Size: 440 × 327 × 92 mm

Why the Hollyland Solidcom H1 Stands Out

We are confident the Hollyland Solidcom H1 Wireless Intercom System will be chosen by UK broadcasters, film crews, and live events teams because it solves key real-world challenges:

• Completely licence-free operation — no hidden or recurring costs.
• Growth-ready architecture — designed to expand with productions as they scale.
• Remote management via browser, app, and cloud for off-site support.
• Full-duplex, low-latency audio across large coverage areas.
• Comfortable lightweight hardware designed for extended production schedules.
• Seamless compatibility with Dante networks and wired intercom systems.

Ready to invest in a professional intercom system? Partner with Raycom today for expert technical advice and support — ensuring your Solidcom H1 deployment meets all your communication needs.

Scalable Communication Solutions for Any Production Stage

For professionals across industries — from live sports to broadcast studios — the Solidcom H1 Wireless Intercom System represents a new benchmark in efficient communication. It offers scalability at every production stage, ensuring small teams and major productions alike can work with the same uncompromising reliability.

No matter the scale or complexity of the event, the Solidcom H1 guarantees streamlined communication for production teams, optimising the workflow, reducing errors, and ensuring smooth coordination from start to finish.

Hollyland Solidcom H1 Pre-Orders & Support from Raycom

The Hollyland Solidcom H1 Wireless Intercom System is available to order through Raycom, with stock available now. Customers can also benefit from demos and rollout support, to test the system before making an investment.

Don’t miss the chance to be among the first in the UK to integrate the H1 into your communications toolkit. Call our friendly team today on 01789 777 040, email us at sales@raycom.co.uk, or use our contact form to order.
